Copeland ZP25LXE-PFV-800 R-410A Scroll Compressor, 25,500 BTU/h, 208/230V 1-Phase

The Copeland ZP25LXE-PFV-800 is a fixed-speed hermetic scroll compressor designed as a service replacement for compatible R-410A HVAC equipment. It provides 25,500 BTU/h nominal cooling capacity and operates on 208/230V, 60 Hz, single-phase power.

Key service specifications include POE oil, 13.9 RLA, a 35 µF/370V run capacitor, 3/4-in suction and 1/2-in discharge stub connections. Copeland developed the LXE family to consolidate earlier ZP R-410A service compressors. Always verify the exact equipment/application cross-reference before replacement; this compressor is for R-410A systems.

This compressor is the direct replacement for the following model numbers (among others): ZP24K5EPFV830, ZP24K6EPFV830, ZP24K7EPFV830, ZP25K5EPFV830, and ZP25K6EPFV830.

• Data Sheet
• Flyer

All sales of compressors are final and come with a 1 year warranty through Copeland. You MUST inspect your shipment upon arrival and inspect the packaging and product for damage. If damage is not noted on the freight shipping document you give up all rights and claims to damage. Returns of new, unused, unmodified compressors may be considered on a case-by-case basis and subject to a 20% restocking fee. Once modified, installed or used, any troubleshooting or warranty claims must be made directly through Copeland and returns and exchanges will be denied with no exceptions.

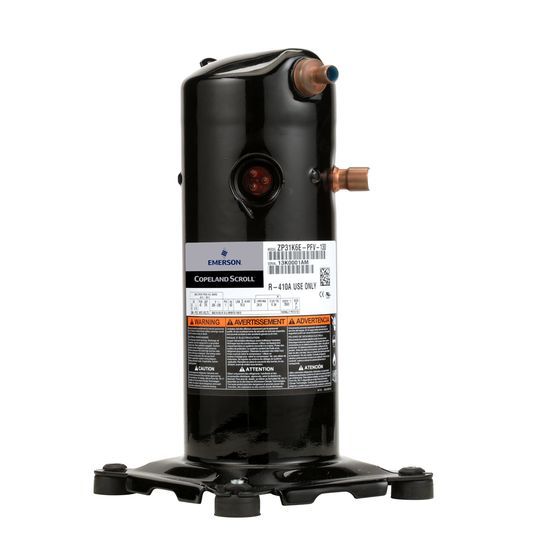

Note: Photo is meant to be representative of the product and may not match exactly. However, all of these are Copeland Scroll compressors.
