Mini-Split Communication Wire (50 ft, 14-4, 600v)

When installing a Mini Split Heat Pump or Mini Split Air Conditioning System the correct Mini Split Air Handler Wire is needed. The indoor Air handler receives its electrical power from the outdoor unit thru this 14/4 electric power wire. The Mini Split Indoor and Outdoor unit also communicate through this wire. It is important to use the correct 14/4 AWG 600V rated wire so the Mini Split can work properly.

• Direct Burial
• UL Listed - Yes
• CUL Listed - No
• Type - Mini Split
• UV Resistant - Yes
• Cable Type - THHN
• Standards - UL1277
• EAN - 781410894983
• Wire Gauge - 14 AWG
• Conductor Quantity - 4
• Insulation Type - PVC with Nylon
• Flame/Smoke Rating - UL 1277 Tray Cable
• Jacket Material - Polyvinyl Chloride (PVC)
• Conductors - 14 AWG STR 19/.0147" Bare Copper
• Temperature Rating - -4°F to 194°F (-20°C to 90°C)
• Application - Industrial Power or Control Circuits

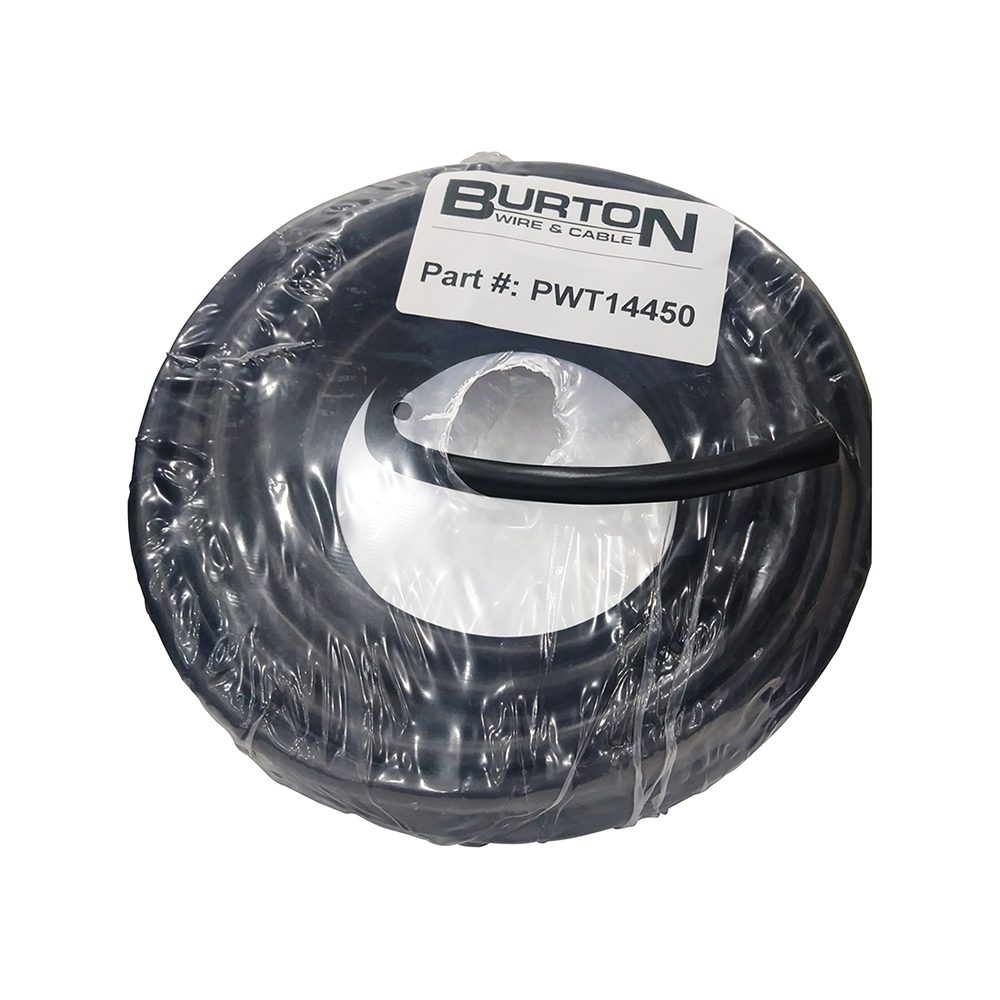

Note: Photo is for illustrative purposes only and you may end up receiving a different brand.
